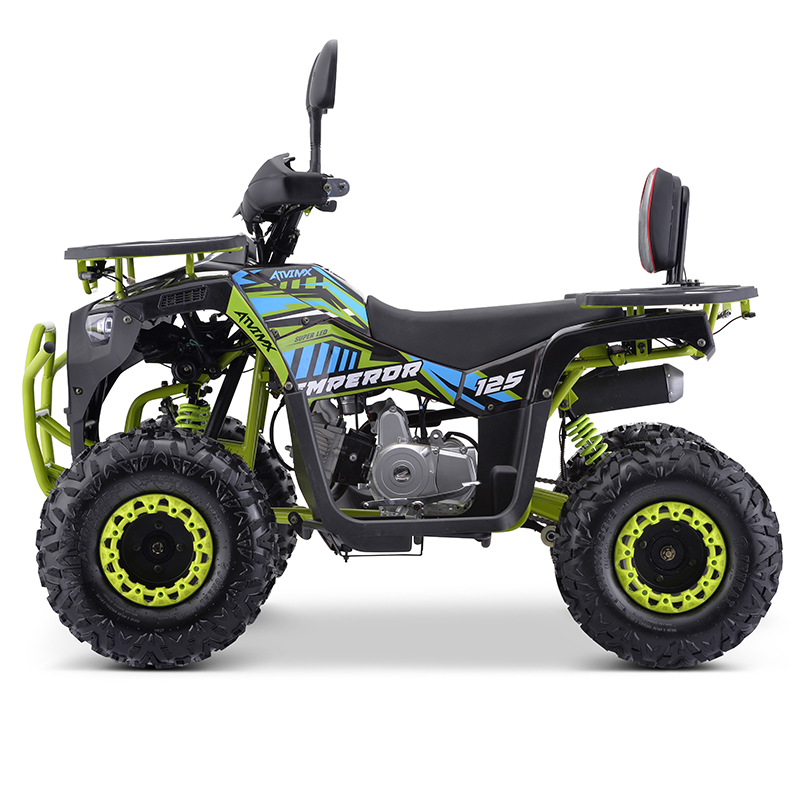

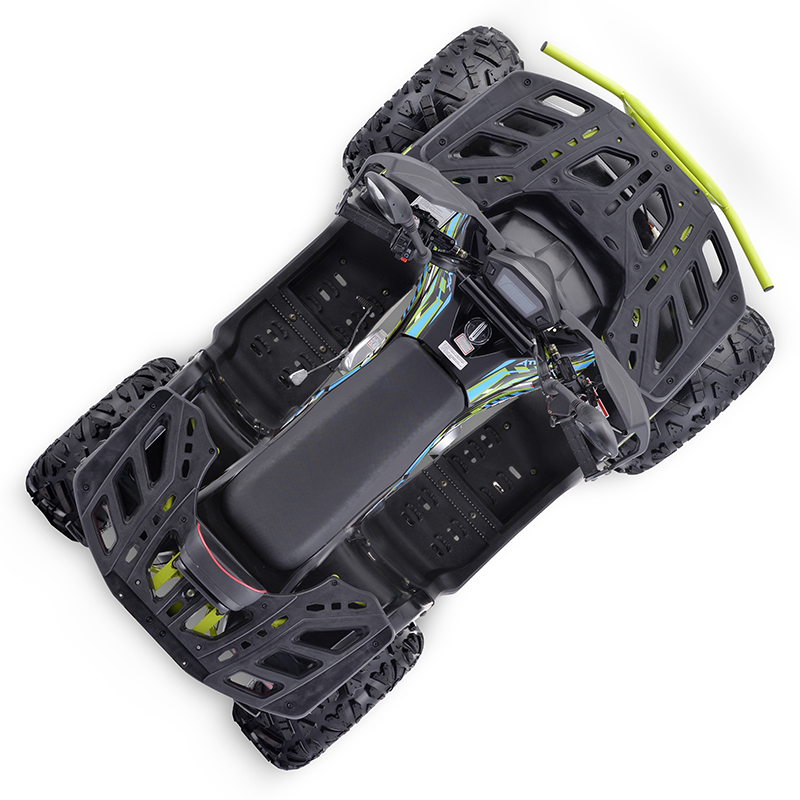

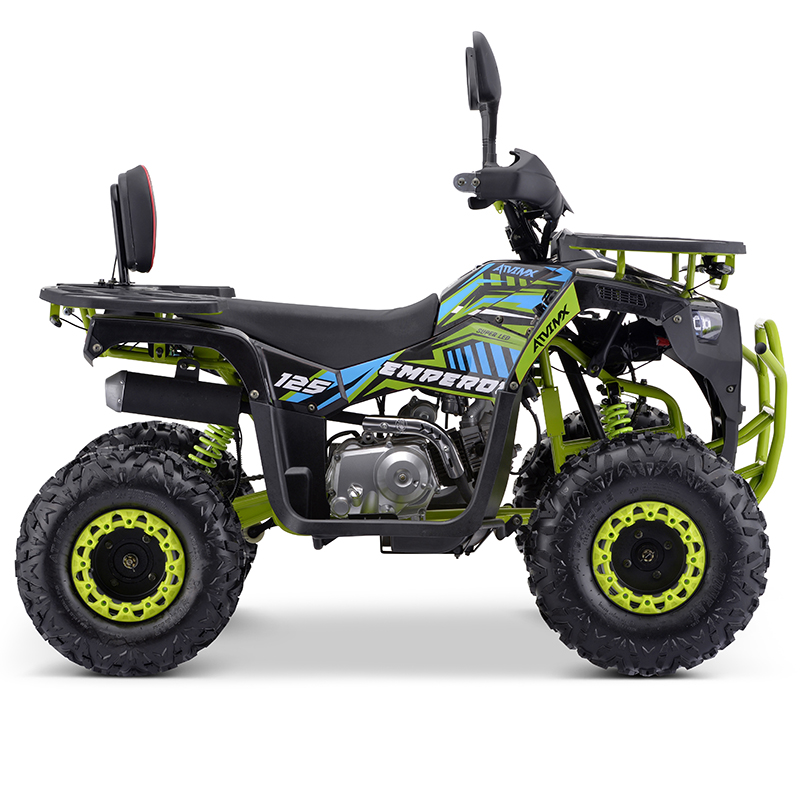

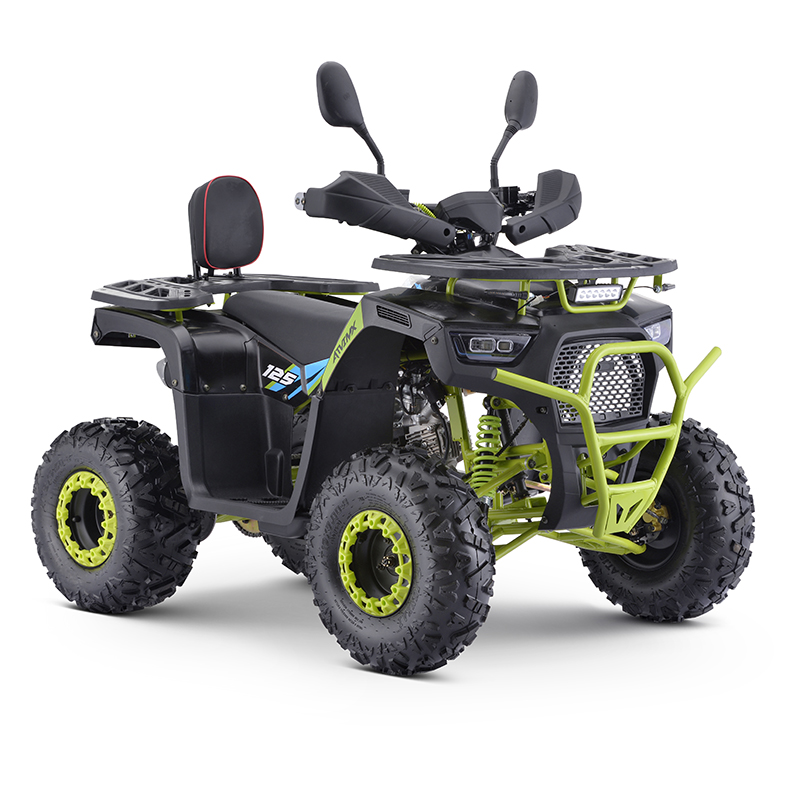

TEENAGER ATV QUADS 110CC 125CC(AE125)
| Engine Type: Water cooled 4stroke signle cylinder | |
| Engine Displacement:110CC | |
| Max Power: 52.4 mm *49.5 mm | |
| Max Torque:6.9N.m/6000r/min | |
| Compression Ratio: 9.0：1 | |
| Ignition: CDI | |
| Starter: electric start | |
| Drive Train | |
| Clutch:semi automatic | |
| Gearbox: FNR | |
| Final Drive:Chain | |
| Dimensions and Weight | |
| Length x Width x Height :1560×930×950 mm | |
| Wheelbase: 1150mm | |
| Ground Clearance：135±15mm | |
| Front Track: 770 mm | |
| Rear Track: 680mm | |
| Seat Height:700±15mm | |
| Seat to Footstep:360mm | |
| Fuel Capacity: 2.5L | |
| Max. speed: 45KM/H | |
| Max load capacity:82kgs | |
| Wheels, Suspension and Brakes | |
| Wheels Front: iron rim | |
| Wheels Rear: iron rim | |
| Tyres Front: 19*7-8 | |
| Tyres Rear 18*9.5-8 | |
| Suspension Front:Independent double-wishbone | |
| Suspension Rear:Swing arm with single shock | |
| Brakes Front: Hydraulic disc brake | |
| Brake Rear: Hydraulic disc brake | |
| Packing | |
| Carton Size: 145x83x63CM | |
| G.W./N.W.115KGS/115KGS | |
| 40HQ Loading Quanity: 88PCS | |
