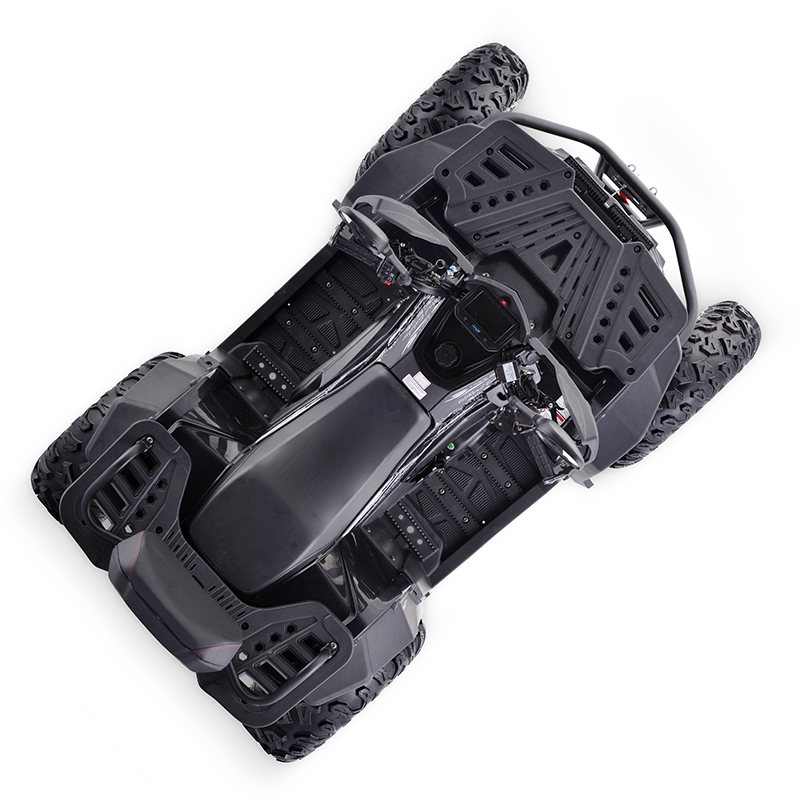

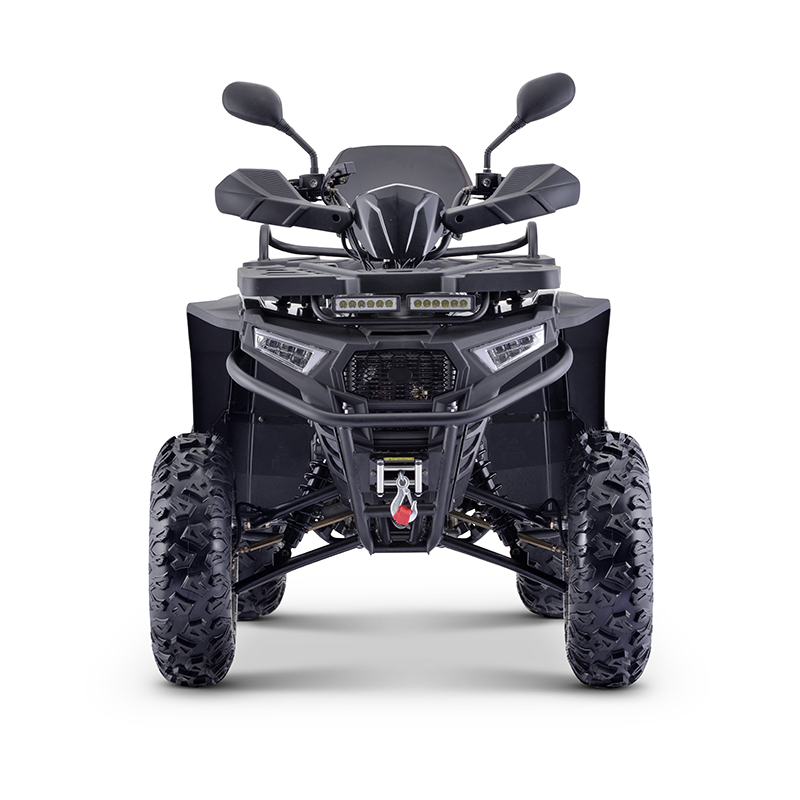

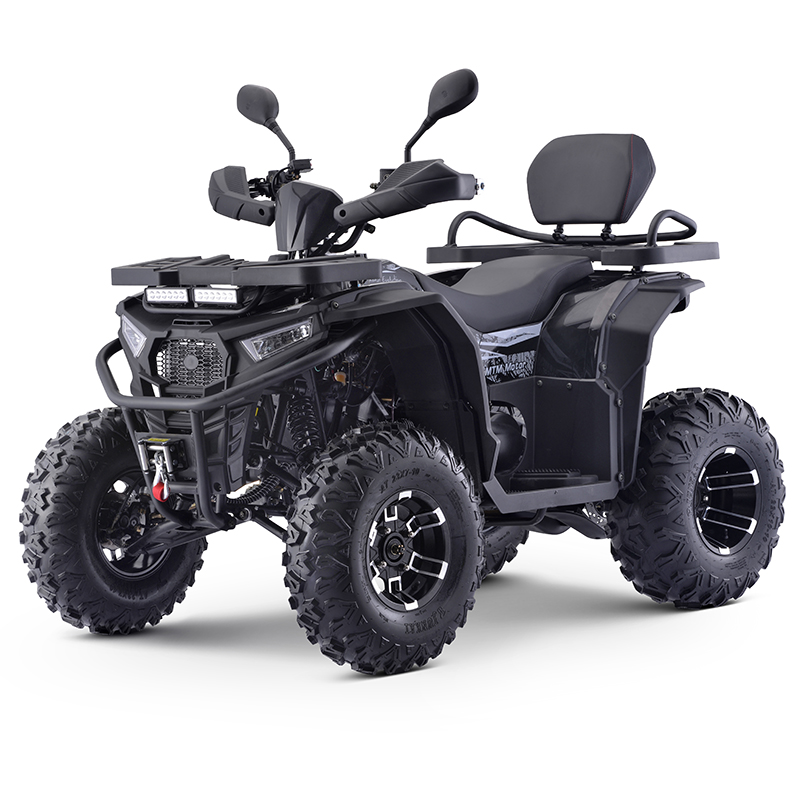

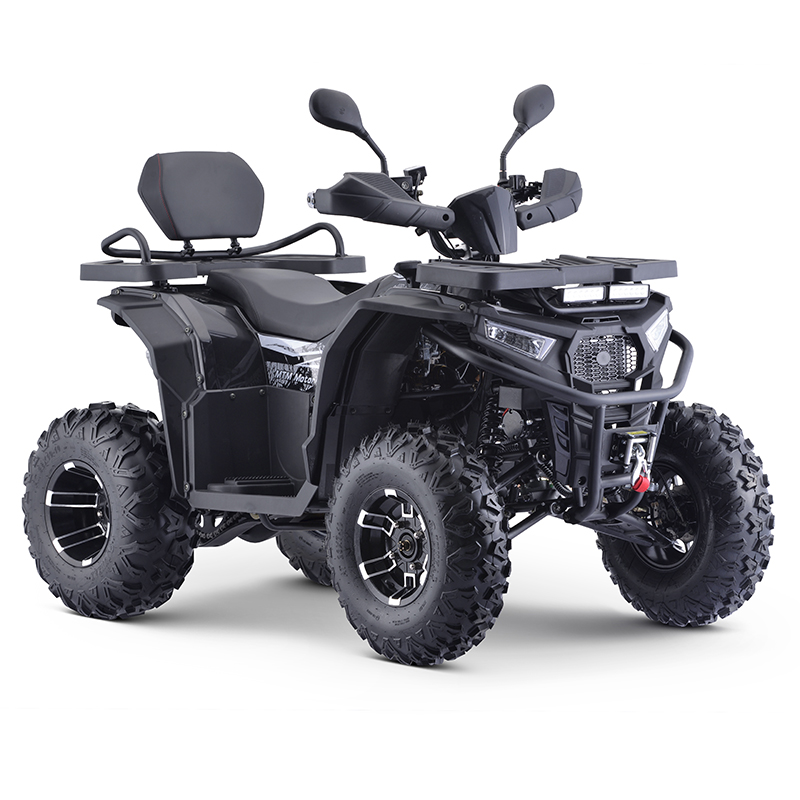

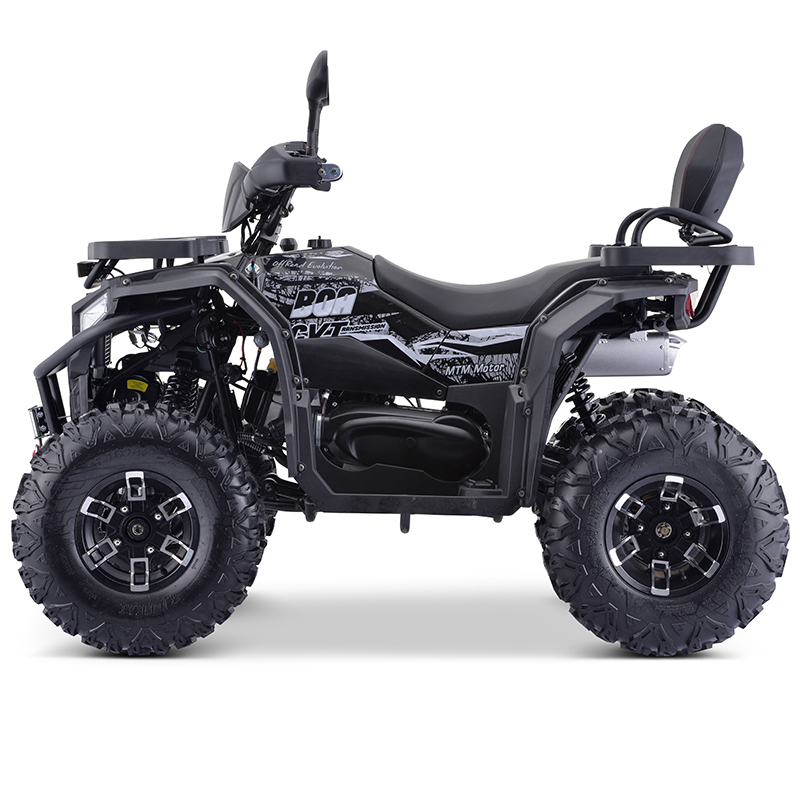

CVT ADULT ATV QUADS NEW DESIGN 200CC(AT230)
| Engine | |
| Engine Type: Water cooled 4stroke signle cylinder | |
| Engine Displacement: 180CC AIR COOLED, OIL COOL OPOTNIAL | |
| Max Power: 7.5kW/7500r/min | |
| Max Torque: 11N·m/6000r/min | |
| Compression Ratio: 10.0:1 | |
| Ignition: CDI | |
| Starter: electric start | |
| Drive Train | |
| Clutch:CVT gears with reverse gear | |
| Gearbox: FNR | |
| Final Drive:Chain | |
| Dimensions and Weight | |
| Length x Width x Height : 1820×1150×1100 mm | |
| Wheelbase: 1200mm | |
| Ground Clearance：155mm | |
| Front Track:1150mm | |
| Rear Track: 1010mm | |
| Seat Height: 820mm | |
| Seat to Footstep: 460mm | |
| Fuel Capacity: 5L | |
| Max. speed: 60KM/H | |
| Max load capacity:120kgs | |
| Wheels, Suspension and Brakes | |
| Wheels Front: iron rim | |
| Wheels Rear: iron rim | |
| Tyres Front: 23*7-10 | |
| Tyres Rear 22*10-10 | |
| Suspension Front:Independent double-wishbone | |
| Suspension Rear:Swing arm with single shock | |
| Brakes Front: Durm brake / disc brake optional | |
| Brake Rear: Hydraulic disc brake | |
| Packing | |
| Carton Size: 1600mmx1100mmx830mm | |
| G.W./N.W.215KGS/190KGS | |
| 40HQ Loading Quanity: 42PCS | |
