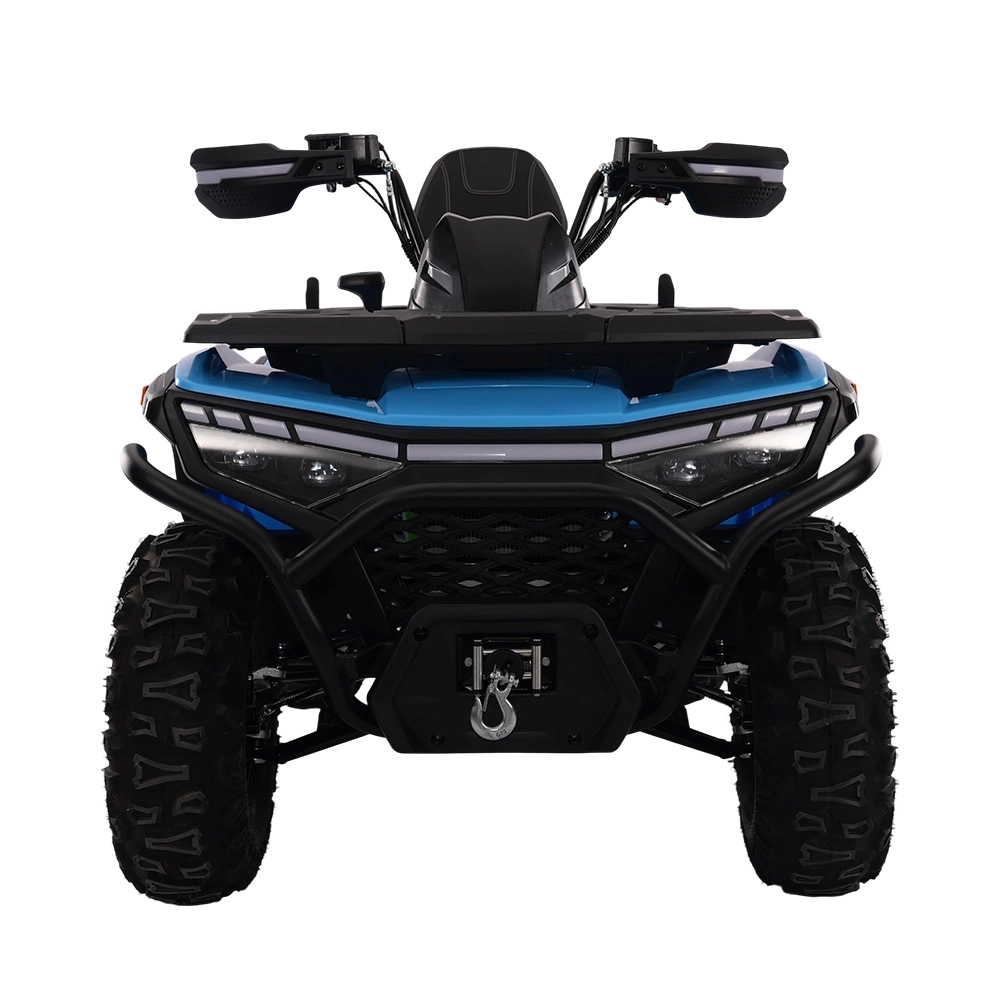

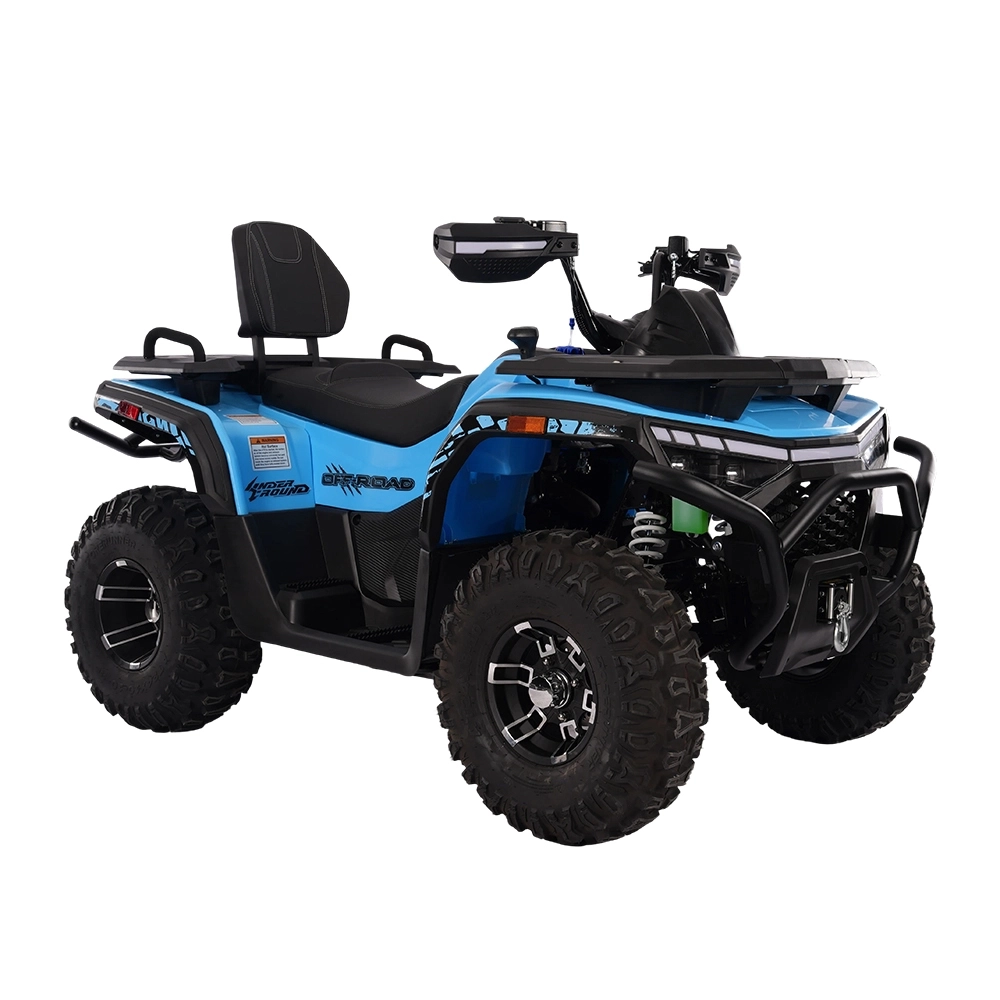

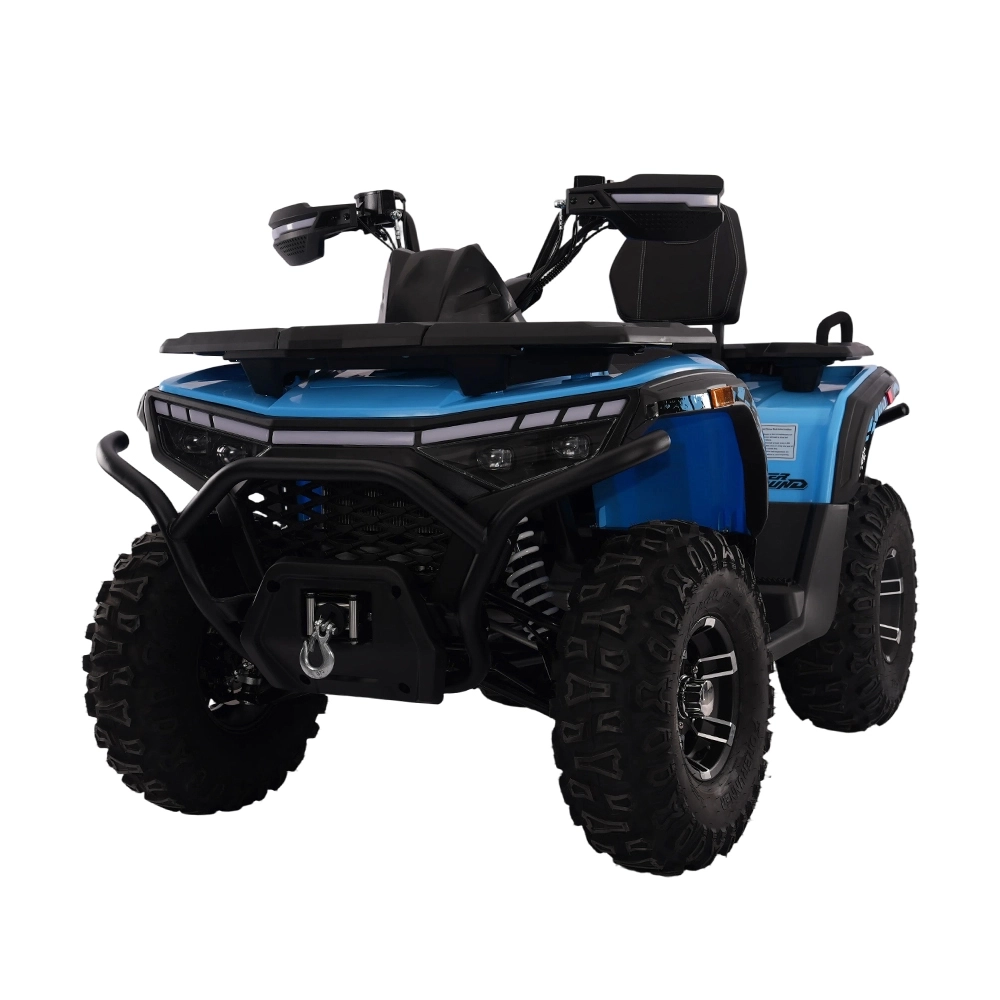

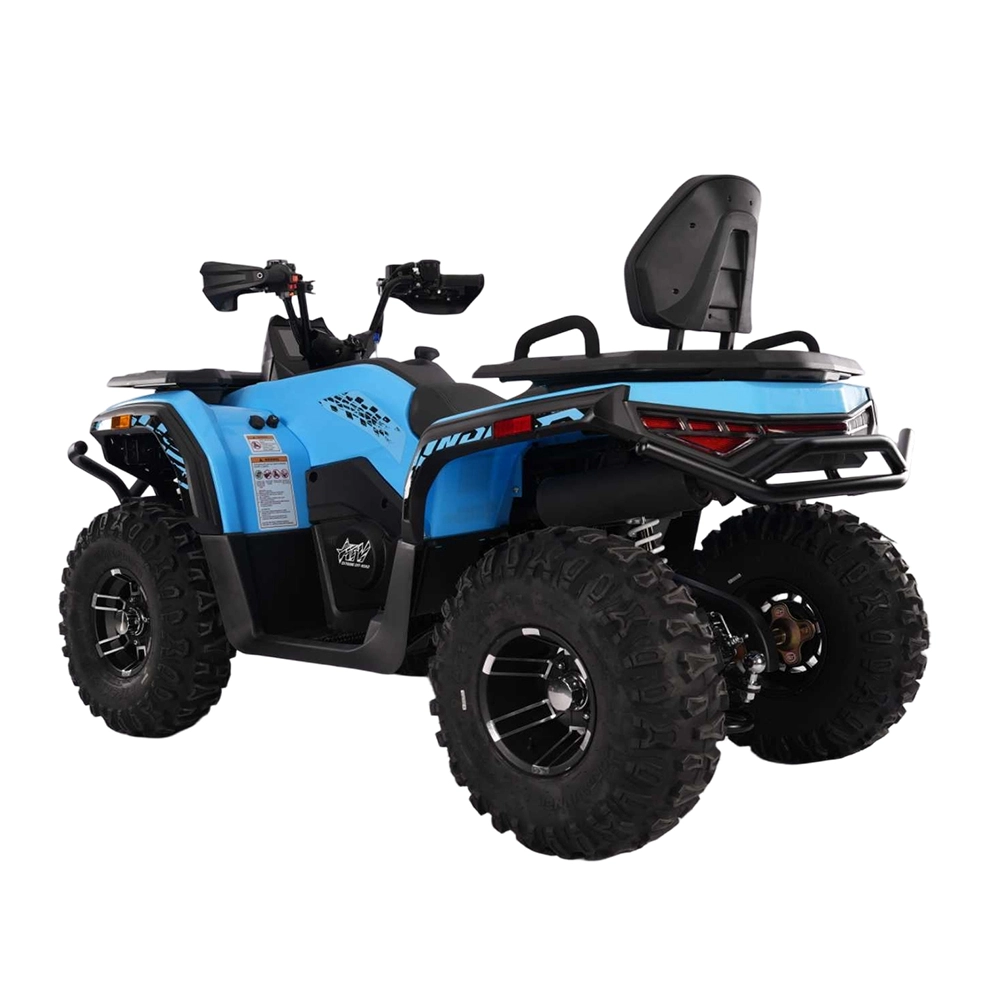

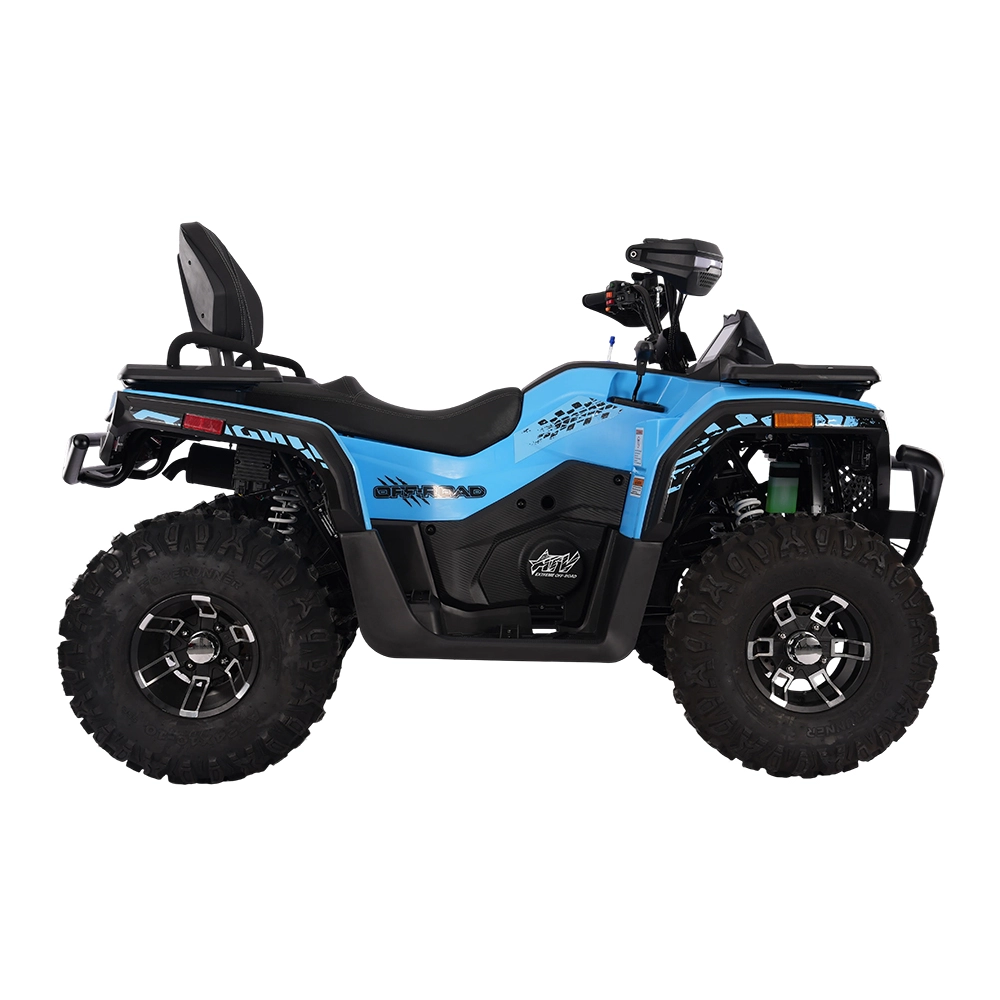

A 270.5cc Loncin water cooled single cylinder engine drives this gasoline ATV through a shaft final drive with automatic clutch R-N-H-L gears. A 12L tank, 24 inch alloy rims with 205/90-10 front tire, and 430mm rear shock absorbers carry 200kg loads over rutted ground. This factory sells wholesale with custom logo for utility and farm buyers.
You can click on the shopping cart to learn more about details, availability, and prices.
| ① Dimension | 2020x1130x1220mm |
| ② Seat height | 856mm |
| ③ Wheelbase | 1363mm |
| ④ Track width | 915mm/840mm |
| ⑤ Ground clearance | The rear axle 188mm off the ground, foot pedal 268mm off the ground |
| Engine | 270.5CC, Single-cylinder, four-stroke, SOHC, water-cooled Loncin engine |
| Bore x Stroke | 72.7x65.2mm |
| Max power | 17kw/(7000rpm) |
| Max torque | 24.5N.m/5000rpm |
| Transmission | Continuously variable transmission |
| lgnition mode | CDI |
| Fuel supply | Carburetor |
| Fuel tank capacity | 12L |
| Starting method | Electric start |
| Gears | Automatic clutch R-N-H-L |
| Drive type | Shaft drive |
| Shock | Front: L=385mm oil damper/Rear: L=430mm oil damper |
| Brake | Front: 160mm/Rear: 220 mm disc brake, single-piston caliper |
| Front rim/Front tire | Alloy Rim: 24×8-10 / Front Tire: 205/90-10 |
| Rear rim/Rear tire | Alloy Rim: 24×10-10 / Rear Tire: 255/70-10 |
| Lights | LED Headlights and rear lights |
| Battery | 12V 12AH |
| Color | Single color paint |
| Packing size | 2190x1180x842mm |
Wuyi Mole Motion Apparatus Co.,LTD.(brand: ATVIMX), established in 2016, is a professional off-road vehicle manufacturer integrating R&D, intelligent manufacturing, sales, and global export.Our company is equipped with automated robotic production equipment and has built standardized intelligent production lines coverin......
We offer ATVs, dirt bikes, go-karts and full accessories, covering kids & adult leisure, racing and amusement scenarios.
We provide OEM private labeling and ODM full R&D customization for off-road vehicles. Add your logo to our mature ATV platforms or build exclusive models from scratch. Our team offers full-chain one-stop solutions for your market.
Our intelligent robotic production lines cover stamping, welding, assembly and full safety testing to guarantee consistent quality and on-time delivery.
