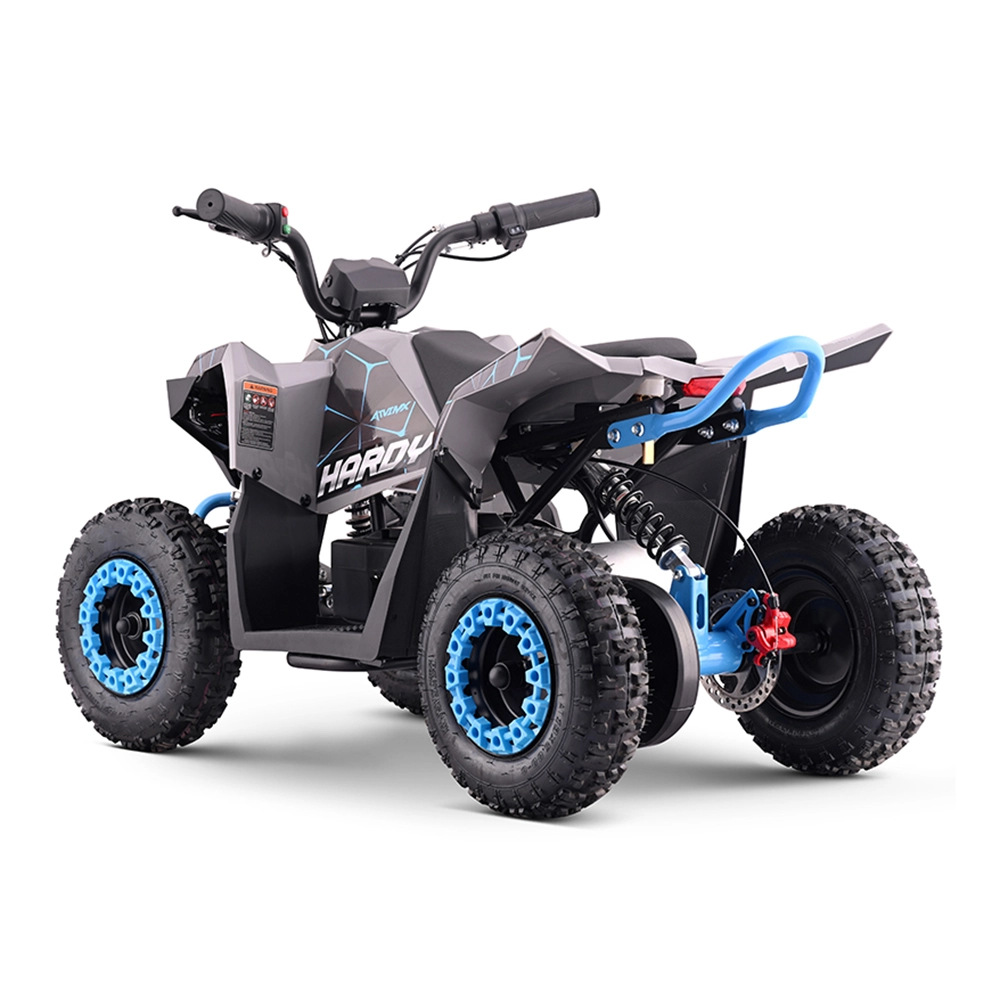

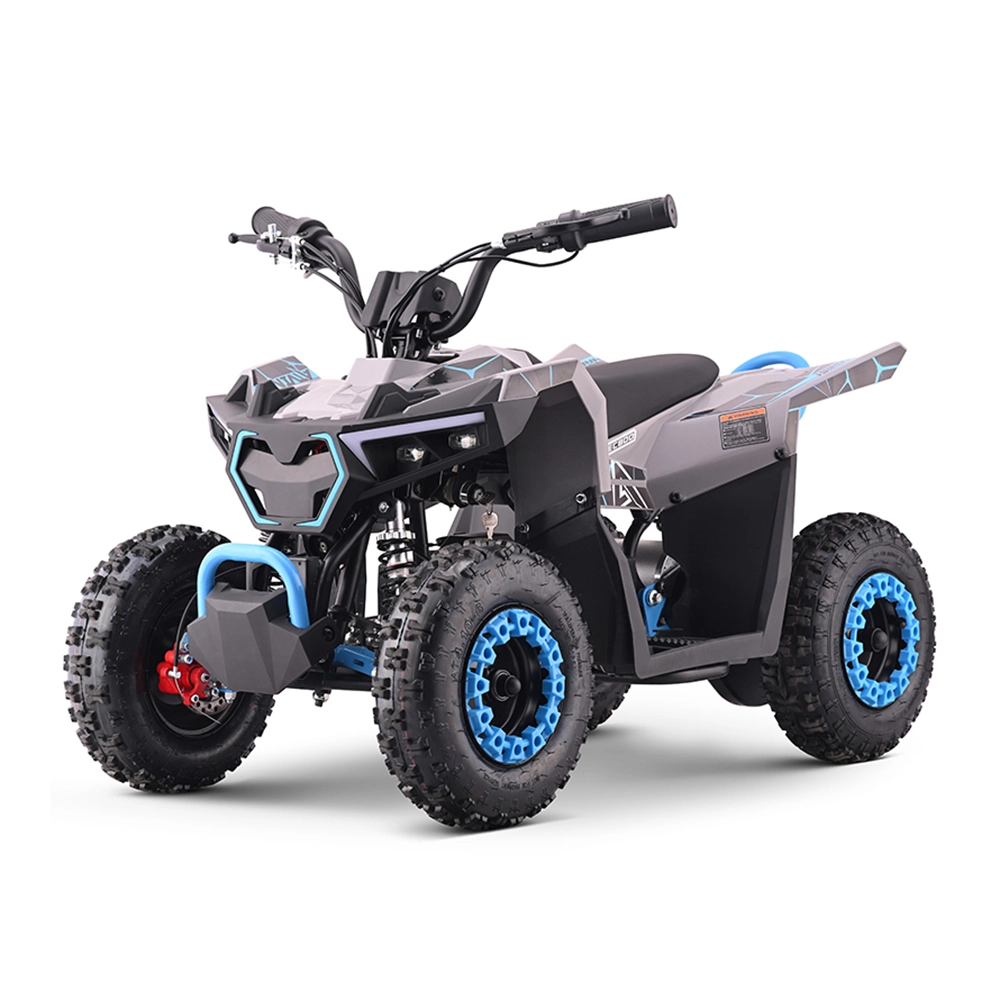

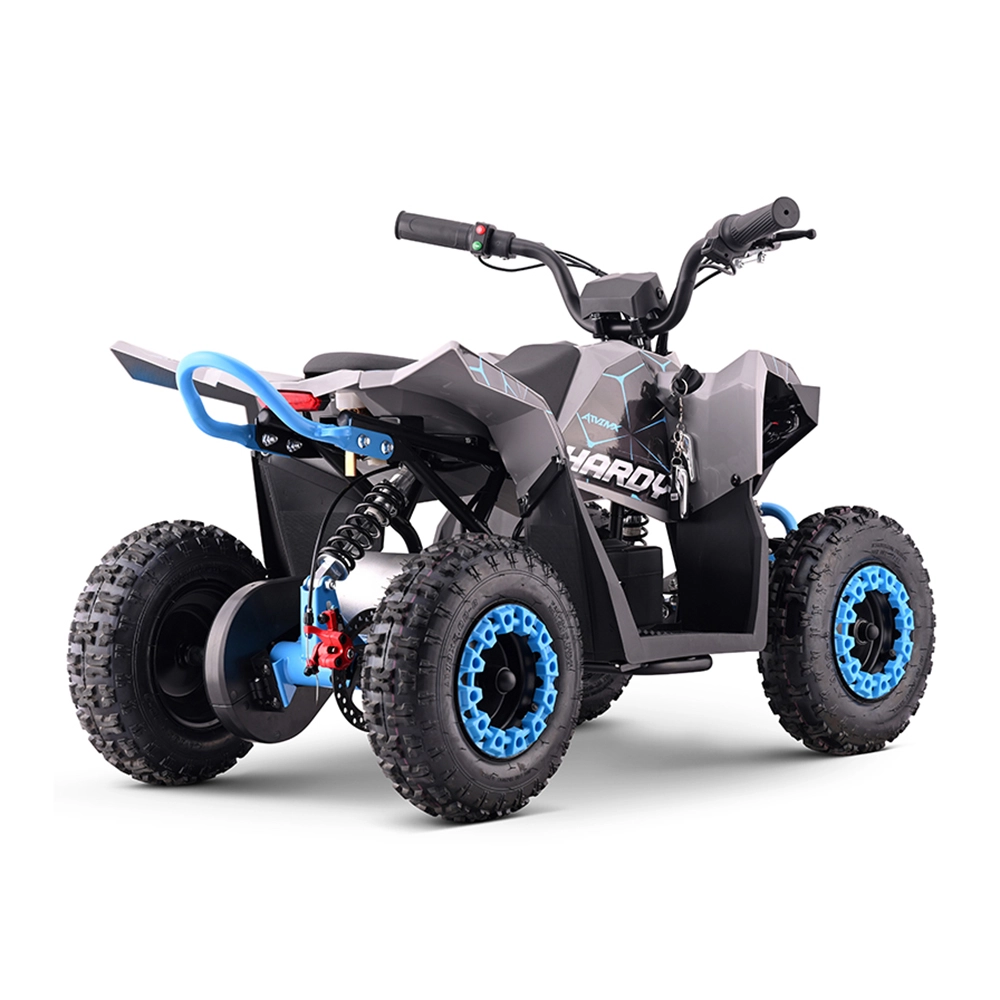

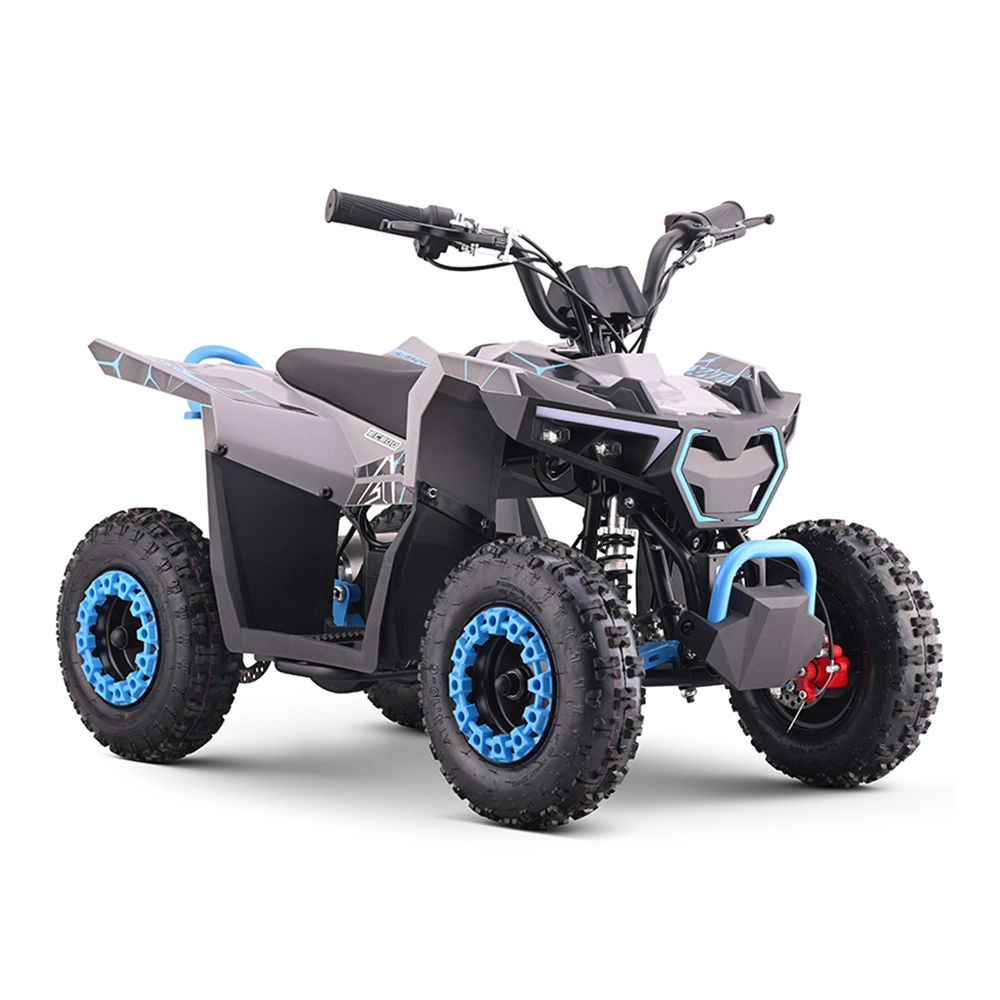

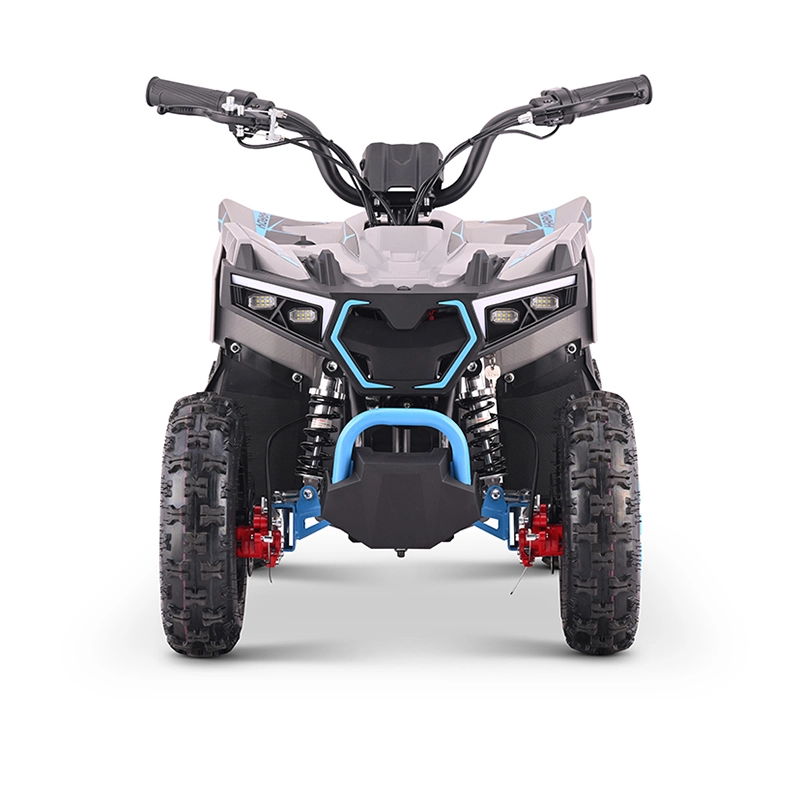

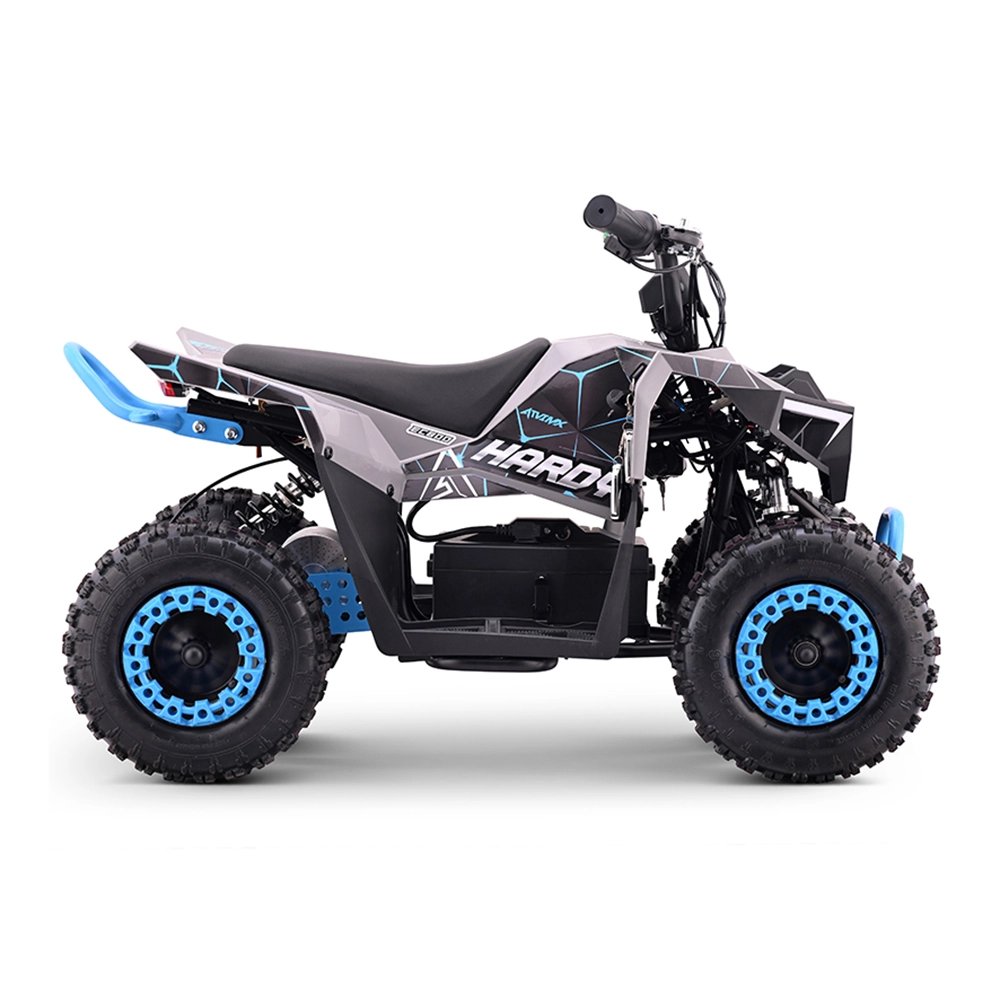

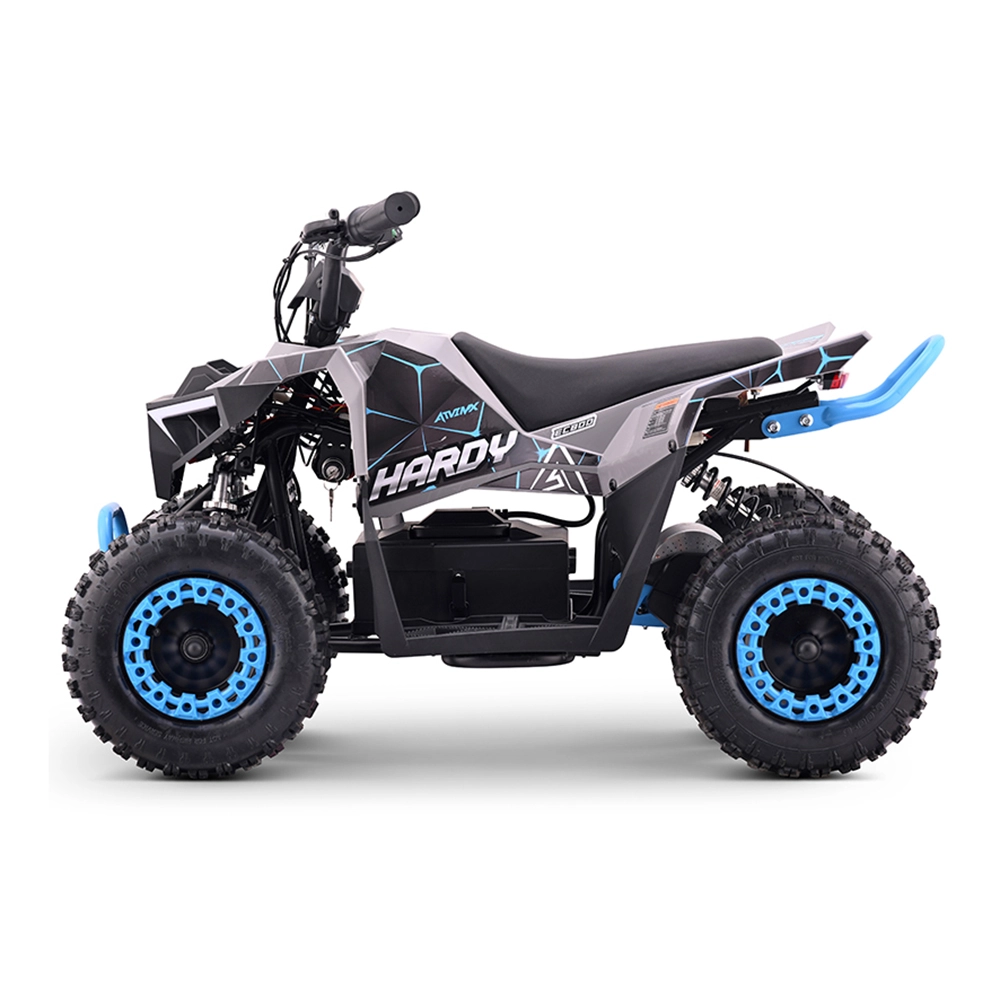

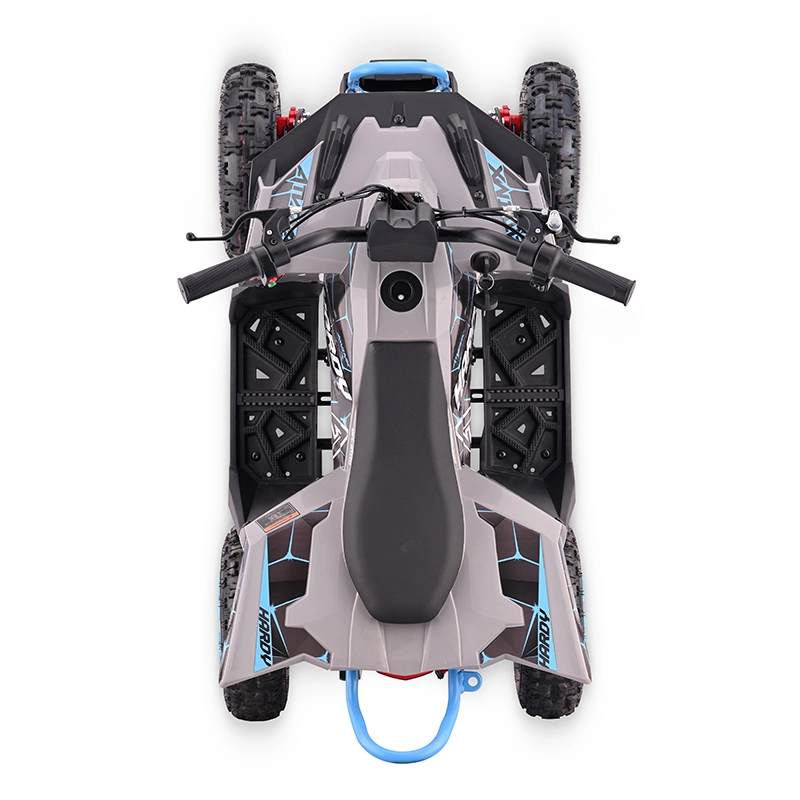

A 36V 12Ah lead acid battery and a brush motor drive this kids electric ATV through three forward speeds and one reverse, so the controls stay simple for a first machine. A 48V 12Ah pack can be substituted where buyers want longer run time, and chain final drive keeps the drivetrain easy to service.

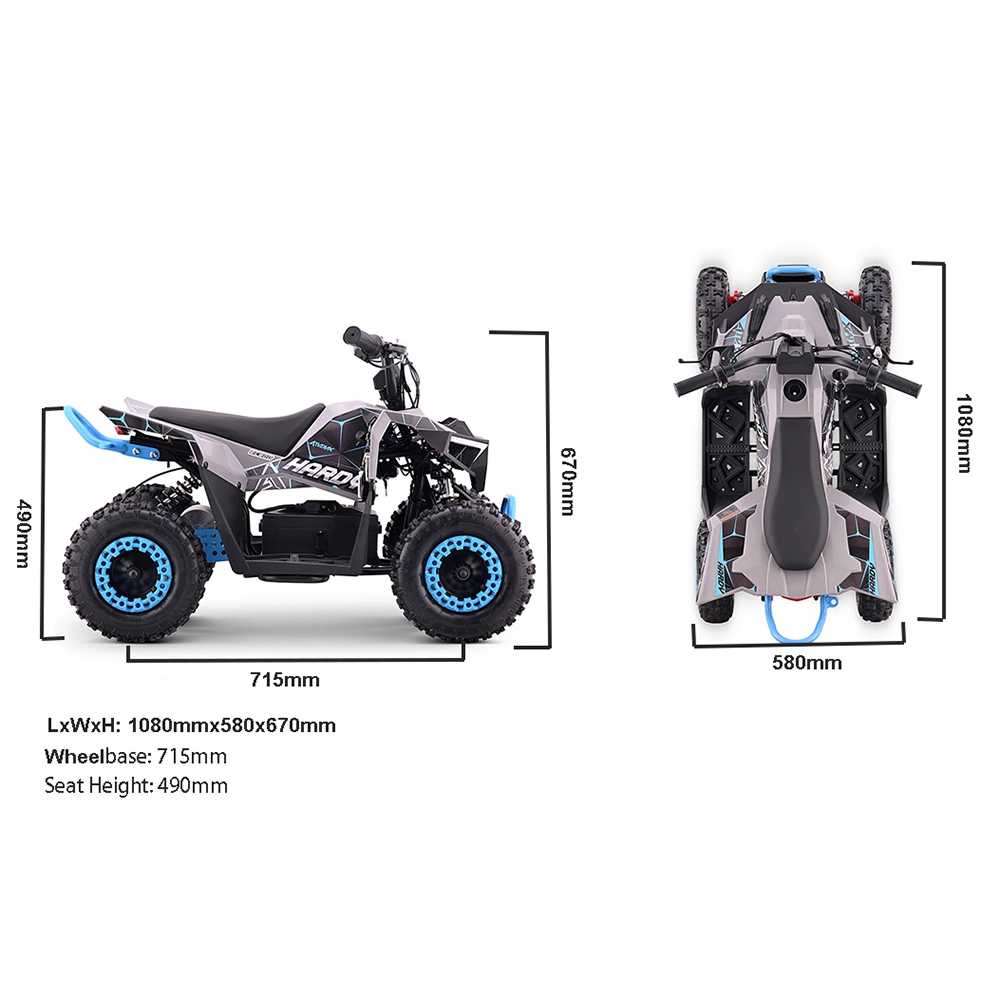

The frame measures 1080x580x670mm on a 715mm wheelbase, with a 490mm seat height that lets younger riders sit flat footed and steady the machine at low speed. Ground clearance is 65mm, which suits lawns, yards, campsite paths and park trails rather than rock crawling.
Wuyi Mole Motion Apparatus Co., LTD. of Zhejiang, China has built the ATVIMX range since 2016 for importers in Europe, Asia and the Americas. Supplied from the factory for bulk supply to contractors and products for resale channels.
You can click on the shopping cart to learn more about details, availability, and prices.
| ① Dimension | 1080x580x670mm |
| ② Wheelbase | 715±20mm |
| ③ Seat height | 490±15mm |
| ④ Min ground clearance | 65±15mm |
| E-motor | Brush motor |
| Battery | 36V 12Ah lead acid (Optioanl 48V 12Ah Lead acid) |
| Speed | 3F/1R |
| Final drive | Chain |
| Range per full charge( 36V12AH lead acid battery) | ~15km |
| Range per full charge( 48V12AH lead acid battery) | ~18km |
| Wheel & tires | High strength steel rim, front 6" and rear 6" |
| Tire | front 4.10-6; rear 13x5.00-6 |
| Max. speed | 18km/h 36V; 20km/h 48V |
| Max load capacity | 65kgs |
| Brake system | Mechnical front and rear disc brake |
| Suspension | Front and rear with damping |
| N.W./G.W. | 48.5kgs/52.5kgs |
| Carton size | 102x56.5x42.5cm |
| QTY | 275pcs/40HQ |
Wuyi Mole Motion Apparatus Co.,LTD.(brand: ATVIMX), established in 2016, is a professional off-road vehicle manufacturer integrating R&D, intelligent manufacturing, sales, and global export.Our company is equipped with automated robotic production equipment and has built standardized intelligent production lines coverin......
We offer ATVs, dirt bikes, go-karts and full accessories, covering kids & adult leisure, racing and amusement scenarios.
We provide OEM private labeling and ODM full R&D customization for off-road vehicles. Add your logo to our mature ATV platforms or build exclusive models from scratch. Our team offers full-chain one-stop solutions for your market.
Our intelligent robotic production lines cover stamping, welding, assembly and full safety testing to guarantee consistent quality and on-time delivery.
